To fit

  1. Fit the tank strap.
    • Secure the tank strap (C) and fit the bolts (B).

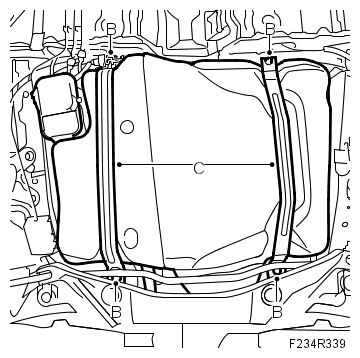

      Fig 1: Identifying Tank Strap Bolts
      G06229951Courtesy of SAAB-SCANIA OF AMERICA, INC.
    • Remove the column lift.
    • Fit the connector (A) to its bracket.

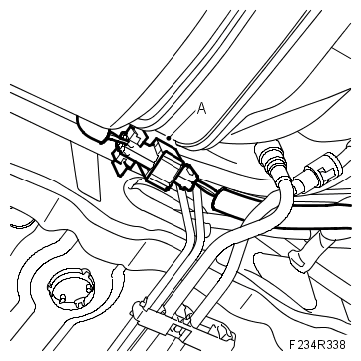

      Fig 2: Identifying Connector
      G06229952Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Lower the car.

    Check that components and connections have not sustained damage.
