TRIONIC T8 Fuel Control System
›
Component Locator
›
Connector H102-1
Connector H102-1
Location:
Under the LH A-pillar.

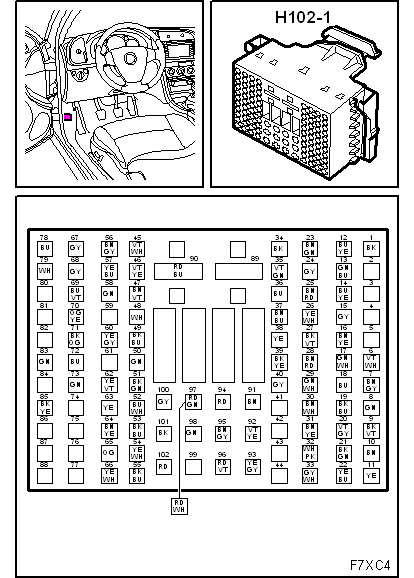

Fig 1: Identifying Connector H102-1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
