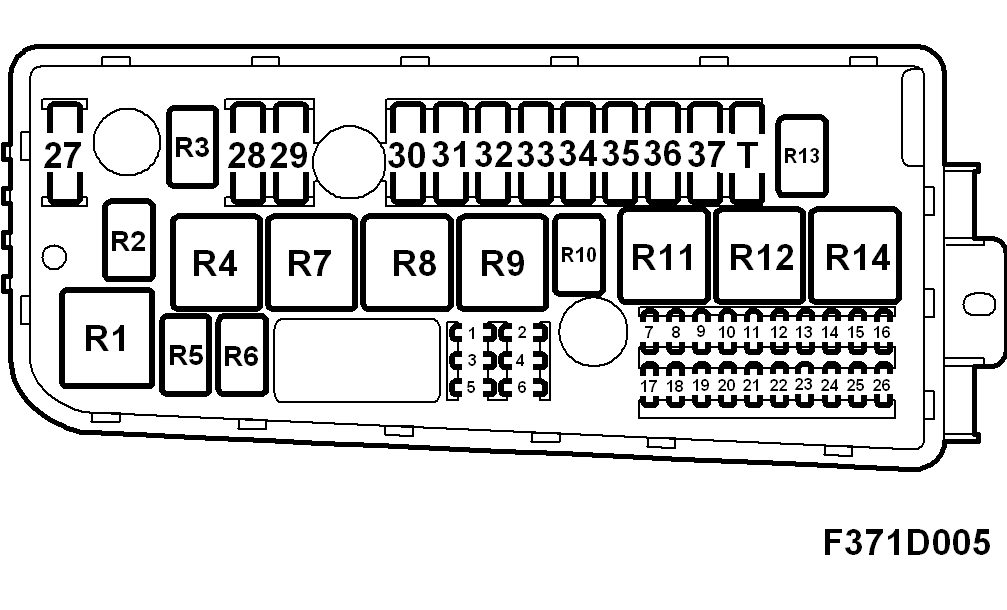

Engine bay electrical center 342 (UEC): Fuses
The electrical center can contain a greater number of fuses than those listed below. In such cases, these are not connected to a wiring harness.
FUSES SPECIFICATION CHART
| No | Amp | Type | Function |
|---|---|---|---|
| 1 | 30 | +30 | Z18XE (Simtec) via main relay 229: Control module, Simtec (705) Heated oxygen sensors (271) EVAP canister purge valve (321) Control valve, VIM damper (454) Module, mass air flow sensor (686) Z19 (EDC16) via main relay 229: ECD16 control module (595B) Glow plug control module (596) Boost pressure control valve (179a) Heating element, oxygen sensor (271) Actuator, swirl throttle (403) Actuator, throttle body (604) Solenoid valve, EGR (606) |
| 2 | 10 | +30 | TCM (502a/b) Trionic T8 control module (589A) Control module, ME9 (608B) Simtec control module (705B) |
| 3 | 20 | +30 | Horn |
| 4 | 10 | +15 | TCM, AF 40 (502b) Battery disconnect switch (700) B207 (T8): Trionic T8 control module (589A) Z18XE (Simtec): Simtec control module (705B) Module, ignition coils (552) Module, power steering unit (745) B284 (ME9): Control module, ME9, switch B (608B) Mass air flow sensor (205) Z19 (EDC16): ECD16 control module (595B) Module, mass air flow sensor (686) Water level sensor, fuel filter (692) Module, power steering unit (745) |
| 5 | - | - | |
| 6 | 10 | +30 | TCM, FA 57 (502a) Immobilizer switch, automatic (77) Gear selector, automatic (245) Immobilizer switch (411) |
| 7 | 7.5 | +15 | Control module, headlight, left (628FL) |
| 8 | 5 | +15 | Vacuum pump unit (459) |
| 9 | 10 | +15 | Control module, AFL |
| 10 | - | ||
| 11 | - | ||
| 12 | 10 | +30 | Washer fluid pump, rear window (63c) |
| 13 | 10 | +30 | EDC16 and Simtec: A/C compressor (170) |
| 14 | - | ||
| 15 | 30 | +30 | Motor, high-pressure headlight washer pump (668) |
| 16 | 30 | Lighting, left front: Side direction indicators, dipped beam, fog light Lighting, right front: Position lamp, direction indicator, side direction indicator, main beam |
|
| 17 | 30 | Windscreen wiper motor, low-speed | |
| 18 | 30 | Windscreen wiper motor, high-speed | |
| 19 | 20 | +30 | Parking heater, diesel (597) Connection, accessories (711) |
| 20 | 10 | +15 | Motors, manual headlamp levelling (280) AHL control module (664) Control module, headlight, right (682FR) |
| 21 | - | ||
| 22 | 30 | +30 | Washer fluid pump, windscreen (63b) |
| 23 | - | ||
| 24 | 20 | +30 | Auxiliary lamp |
| 25 | 20 | +30 | Front amplifier (354F) |
| 26 | 30 | +30 | Lighting, left front: direction indicator, position lamp, main beam Lighting, right front: dipped beam, fog light |
| 27 | 60 | +30 | B207 (T8): |
| maxi | Main fuse for fuse box 727 | ||
| 20 | Z18XE and Z19 (Simtec and EDC16): | ||
| maxi | fuel pump (323) | ||
| 28 | 40 maxi |
+30 | Control module, TCS/ESP (382/671) |
| 29 | 60 maxi |
+30 | Main fuse 2 for rear electrical center |
| 30 | 60 maxi |
+30 | Main fuse 1 for dashboard electrical center |
| 31 | 40 maxi |
+30 | Starter motor solenoid via relay 517 |
| 32 | 60 maxi |
+30 | Main fuse 2 for dashboard electrical center |
| 33 | 40 maxi |
+30 | Control module, TCS/ESP (382/671) |
| 34 | 60 maxi |
+30 | Main fuse 1 for rear electrical center |
| 35 | 30 | +30 | B207 and Z18XE: Radiator fan |
| maxi | B248: Vacuum pump unit | ||
| 36 | 20 | +30 | B207: Radiator fan |
| maxi | EDC16: Heating element, fuel filter | ||
| 37 | 60 maxi |
+30 | Transport lock. Main fuse 3 for rear electrical center |
