Instrument panel electrical center 22 (IPEC): Relays

Fig 1: Identifying Relays

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The electrical center can contain a greater number of relays than those listed below. In such cases, these are not connected to a wiring harness.

RELAYS SPECIFICATION CHART

Location	No	Description	Illustration
R1	21	Relay, +54	Courtesy of SAAB-SCANIA OF AMERICA, INC.

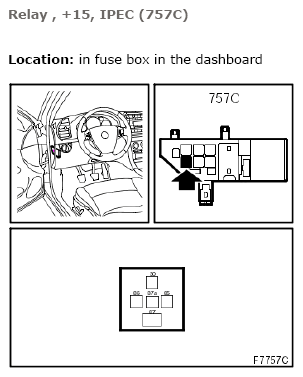

R2	757C	Relay, +15, IPEC	Courtesy of SAAB-SCANIA OF AMERICA, INC.
R3		-
R4		-
R5		-
R6	756	Relay, accessories
R7		-
Soldered circuit board	717	Interior lighting relay	Courtesy of SAAB-SCANIA OF AMERICA, INC.
