TRIONIC T8 Fuel Control System
›
Component Locator
›
Throttle body actuator (604)
Throttle body actuator (604)
Location:
integrated in the throttle body
B207

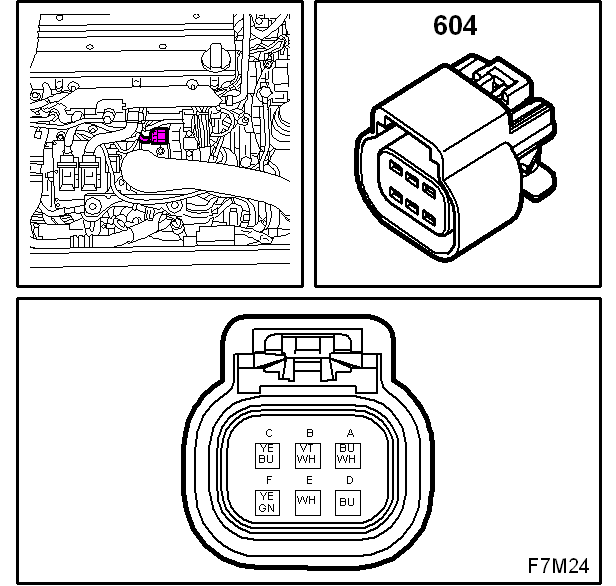

Fig 1: Identifying Throttle Body Actuator (604) - B207
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
