Brake light switch (29), T8: Connection

PIN SIGNAL DESCRIPTION CHART

Pin No.	Signal type	Description
1	+30	Power supply from fuse 6.
2	Signal	The pin receives B+ when the brake pedal is depressed. Connected to ECM pin 14(A).

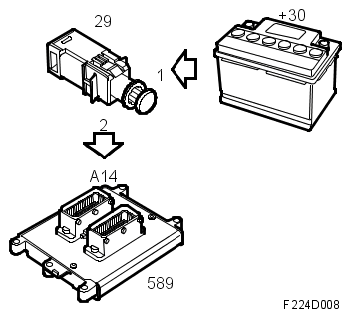

Fig 1: Brake Light Switch (29), T8 - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 2: Brake Light Switch (29), T8 - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
