To fit

Fit the three position sensor nuts.

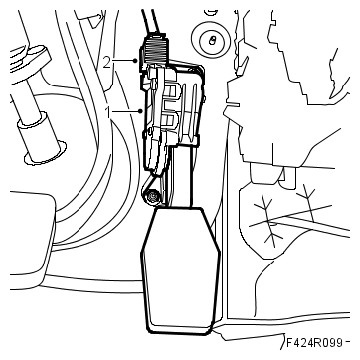

Fig 1: Illustration For Steps 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 8 Nm (6 lbf ft).
Plug in the connector to the position sensor.
Fit the 2 sound insulating baffle screws to the climate housing and instrument panel.

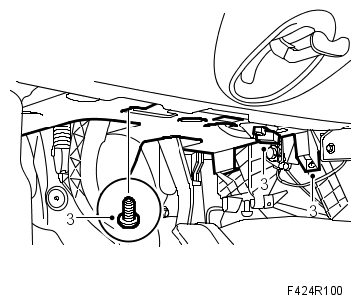

Fig 2: Identifying 2 Sound Insulating Baffle Screws
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the center console front side piece.

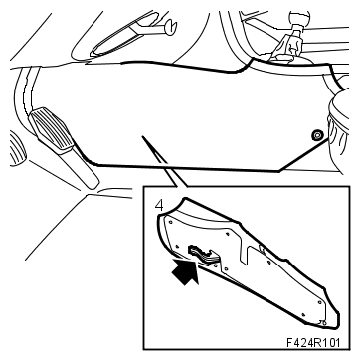

Fig 3: Identifying Centre Console Front Side Piece
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Adjust the seat position.
