TRIONIC T8 Fuel Control System
›
Repair Instructions
›
Intake manifold sensor (688)
›
To fit
To fit
Fit the sensor with a new O-ring sparingly lubricated with Vaseline.

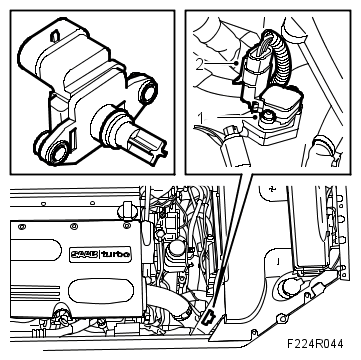

Fig 1: Illustration For Steps 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Plug in the connector.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
