To fit

  1. Fit the oil level sensor to the oil pan.

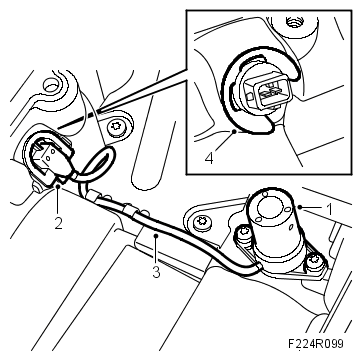

    Fig 1: Illustration For Steps 1-4
    G06230270Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the connector with a new O-ring sparingly lubricated with Vaseline.
  3. Check the location of the cables and that they are secured properly, adjust as necessary.
  4. Fit the retaining clip.
  5. Fit the OIL SUMP .
