TRIONIC T8 Fuel Control System
›
Repair Instructions
›
Manifold absolute pressure sensor (431)
›
To remove
To remove

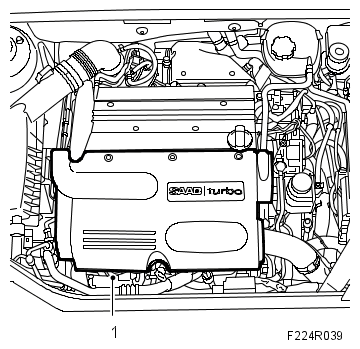

Remove the upper engine cover.
Fig 1: Identifying Upper Engine Cover
Courtesy of SAAB-SCANIA OF AMERICA, INC.

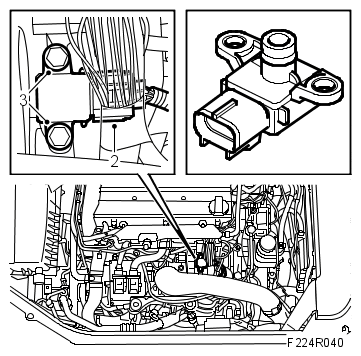

Carefully press down the catch with a screwdriver and unplug the connector.
Fig 2: Illustration For Steps 2-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the sensor.
