TRIONIC T8 Fuel Control System
›
Repair Instructions
›
Spark plug (157)
›
To remove
To remove
Remove the cover over the ignition coils.

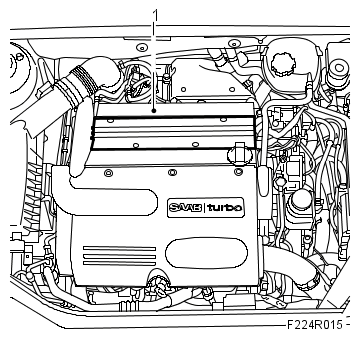

Fig 1: Identifying Ignition Coils Cover
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the bolts, lift up each ignition coil and move aside. Start with the ignition coil for cylinder 1.

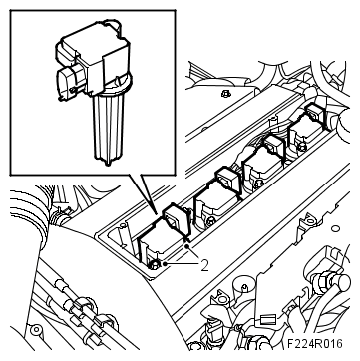

Fig 2: Identifying Ignition Coil And Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the spark plugs, socket 8394785.
