Switch, coupling, immobilizer (411)
›
To remove
To remove
Remove the acoustic baffle on the driver's side. See
SOUND INSULATION PANEL, DRIVER
.

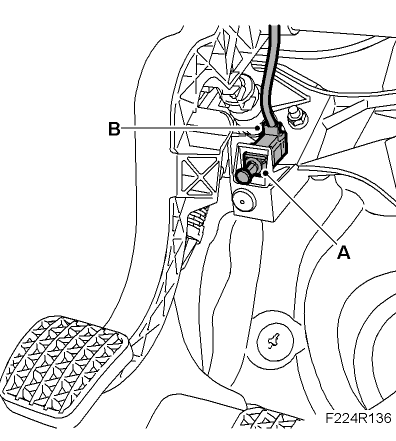

Fig 1: Removing/Installing Immobilizer Switch Coupling
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Pull out the contact's push rod and locking sleeve.
Compress the lock tabs and remove the contact (A).
Unplug the connector (B)
