To remove

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

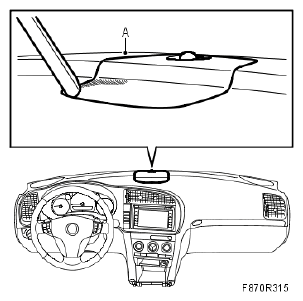

  1. Remove the speaker grille (A). Use 82 93 474 REMOVAL TOOL .
    Fig 1: Removing Speaker Grille (Using 82 93 474 Removal Tool)
    G05173984Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the connector (A).
    Fig 2: Identifying Sun Sensor And Connector
    G05173819Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the sun sensor (B) from the speaker grille.
