Passenger Compartment
WARNING: This page is about a different car, the 2010 Saab 9-3X and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

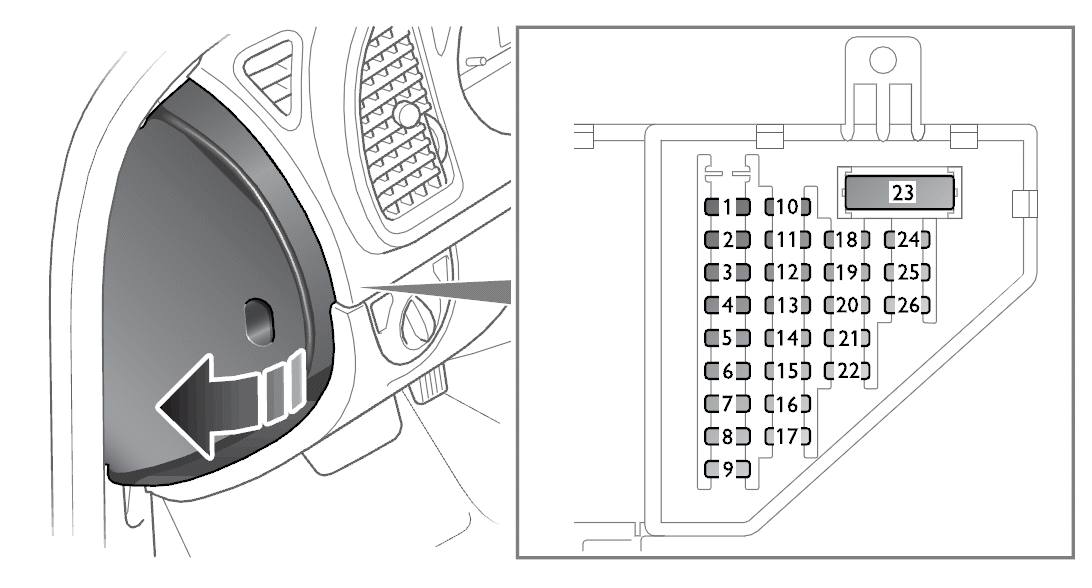

Passenger compartment fuse box is located behind a hatch on the left-hand end of the dash.
Passenger Compartment Fuse Box
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| 1 | 15A | Steering wheel lock |
| 2 | 5A | Steering column unit; ignition switch |
| 3 | 10A | Hands-free |
| 4 | 10A | Main instrument unit; automatic climate control (ACC) |
| 5 | 7.5A | Control module in front doors; Park Brake Shift Lock (automatic transmission) |
| 6 | 7.5A | Brake light switch |
| 7 | 20A | Dash fuse panel; fuel filler door |
| 8 | 30A | Control module in passenger front door |
| 9 | 10A | BCM |
| 10 | 30A | Trailer socket; electrical socket in storage compartment between seats |
| 11 | 10A | Data link connection (diagnostics) |
| 12 | 15A | Interior lighting incl. glove box |
| 13 | 10A | Accessories |
| 14 | 20A | Amplifier 2, Sound System 3 |
| 15 | 30A | Control module in driver's door |
| 16 | 5A | Passenger Sensing System |
| 17 | 7.5A | Connection, electronic road tolls (461) |
| 18 | - | - |
| 19 | - | - |
| 20 | 7.5A | Headlight levelling switch |
| 21 | 7.5A | Hands-free; brake light switch; manual climate control; clutch pedal switch |
| 22 | 30A | Cigarette lighter |
| 23 | 40A | Cabin fan |
| 24 | 7.5A | Airbag control module |
| 25 | - | - |
| 26 | 5A | Yaw sensor (cars with ESP) |
| 27 | - | - |
