Handbrake function check

  1. Check that the distance between the arm and brake caliper is 1 mm when the lever is in its lowermost position.

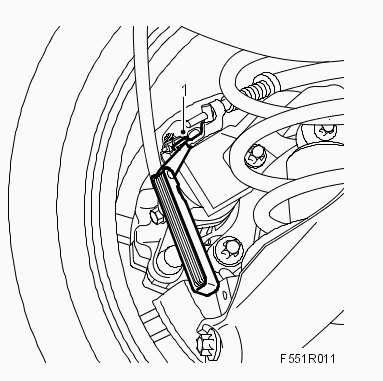

  2. Fig 1: Identifying Lever And Stop
    G05564463Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. If the distance is incorrect, adjust the handbrake.
  4. Apply the handbrake and check that both wheels are affected.
  5. Release the handbrake and check that both wheels rotate freely.
