To fit

  1. Plug in the connector.

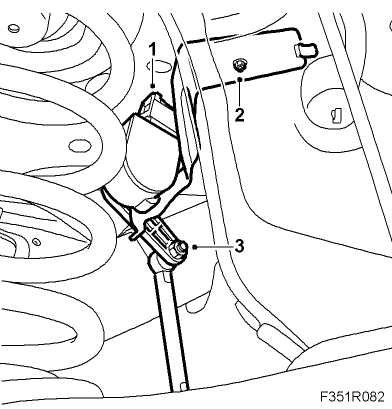

    Fig 1: Illustration For Steps 1-3
    G05055411Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Refit console with sensor.

    Tightening torque up to and including M06 8 Nm (6 lbf ft)

    Tightening torque from and including M07 10 Nm (7 lbf ft)

  3. Refit upper ball section in link arm.
  4. Carry out AHL control module calibration .
