Crimp J275, adapter harness EDC16: Notes

Location:  Approx. 50 mm from branching point H11-1 connector towards engine control module.

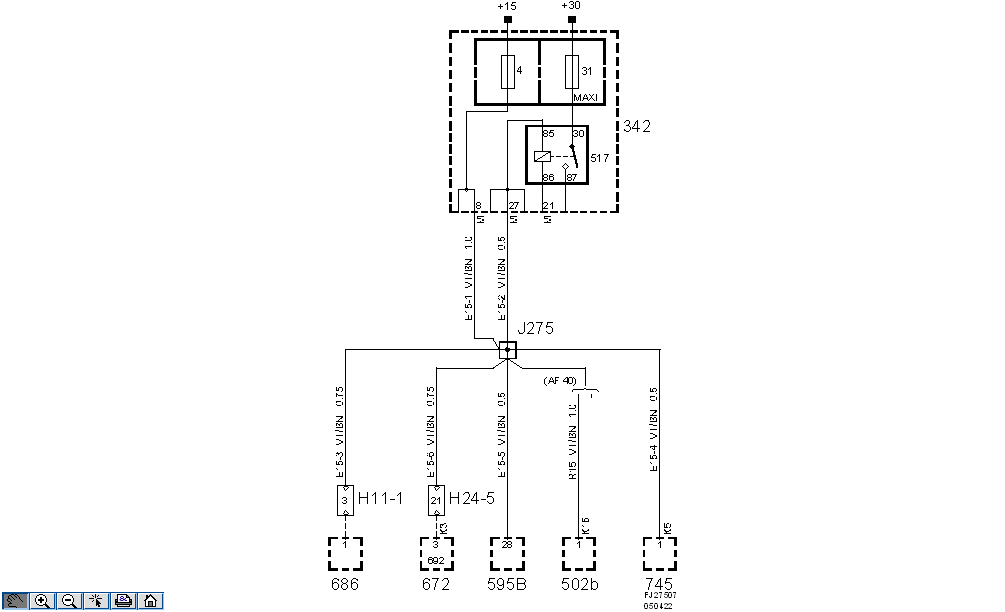

Fig 1: Crimp J275, Adapter Harness EDC16 - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
