Pressure sensor, secondary air (760)

Location:

B284:  on the delivery pipe from the secondary air pump.

B207:  on delivery pipe close to secondary air valve.

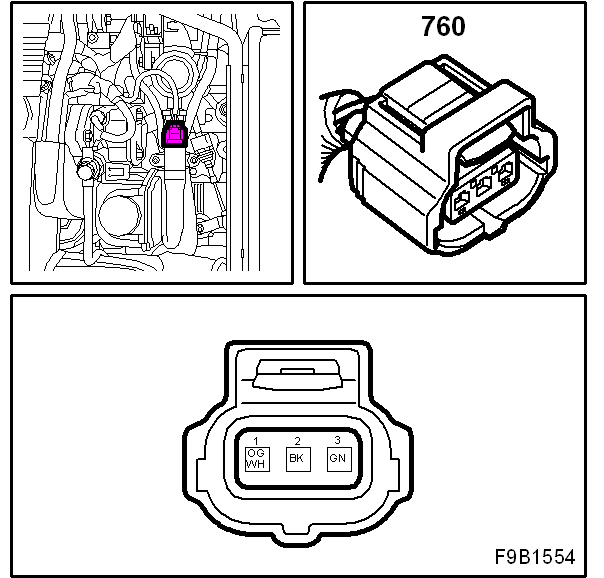

Fig 1: Locating Pressure Sensor, Secondary Air (760) B284

Courtesy of SAAB-SCANIA OF AMERICA, INC.

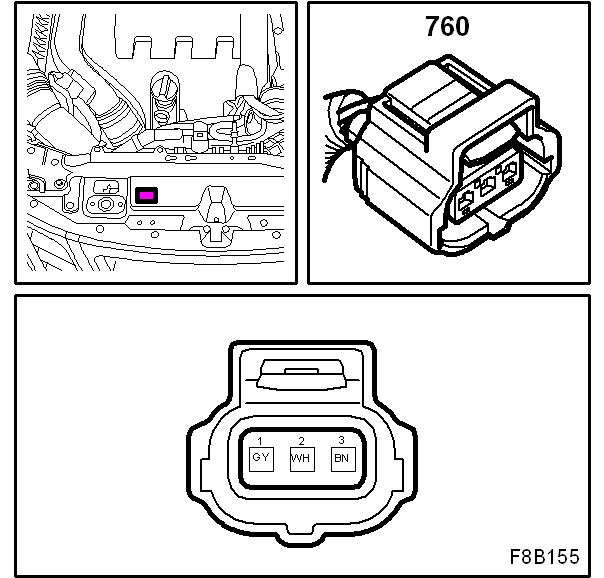

Fig 2: Locating Pressure Sensor, Secondary Air (760) B207

Courtesy of SAAB-SCANIA OF AMERICA, INC.
