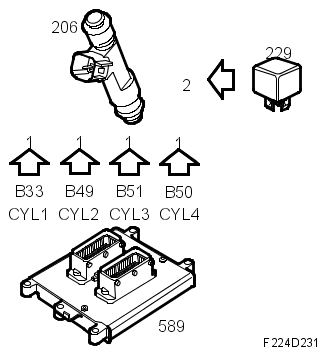

Injector (206), T8: Connection
PIN SIGNAL DESCRIPTION CHART
| Pin No. | Signal type | Description |
|---|---|---|
| 1 | Power supply, B+ | Injector's power supply from the main relay. |
| 2 | Control | Injector's control. The injector is grounded by ECM. Injector cyl 1: ECM pin 33(B) Injector cyl 2: ECM pin 49(B) Injector cyl 3: ECM pin 51(B) Injector cyl 4: ECM pin 50(B) |
To achieve optimal combustion and thereby cleaner exhaust, the location and spray pattern of injectors is very important.
Do not turn the injectors. The connectors should point straight up. Otherwise, streams of fuel will hit the walls of the intake channels, which affects emissions and driveability.
Wiring diagram, injector 1 (206a)
Wiring diagram, injector 2 (206b)
Wiring diagram, injector 3 (206c)
Wiring diagram, injector 4 (206d)
