Lower heated oxygen sensor, 4WD (593)
›
To remove
To remove
Unplug the connector (A) for the oxygen sensor and carefully lower the cable.

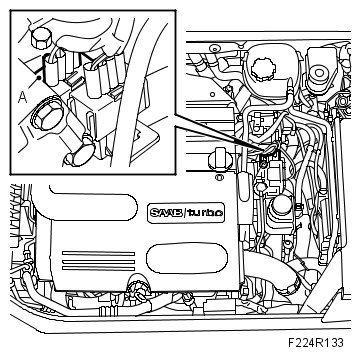

Fig 1: Identifying Oxygen Sensor Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Raise the car.
Remove the lower turbocharger delivery pipe (B).

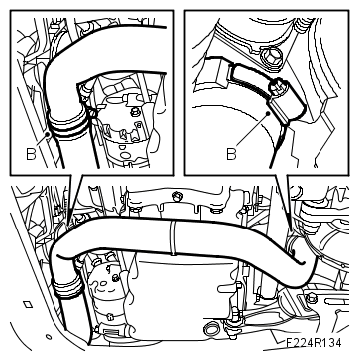

Fig 2: Identifying Lower Turbocharger Delivery Pipe
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Run the cable forward and remove the oxygen sensor (C).

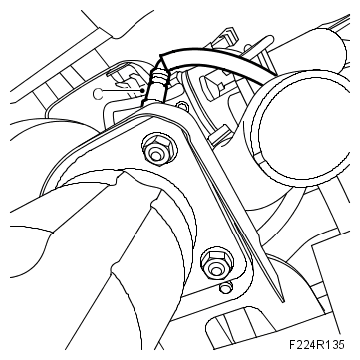

Fig 3: Identifying Oxygen Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
