Main components

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

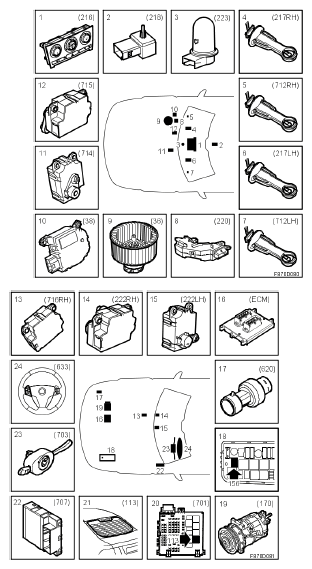

Fig 1: Identifying Automatic Climate Control Components (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Automatic Climate Control (216)
2. Temperature sensor, cabin air (218)
3. Solar sensor (223)
4. Mixed air temperature sensor, right, floor (217RH)
5. Mixed air temperature sensor, right, panel (712RH)
6. Mixed air temperature sensor, left, floor (217LH)
7. Mixed air temperature sensor, left, panel (712LH)
8. Ventilation fan control (220)
9. Motor, ventilation fan (36)
10. Motor, air recirculation flap (38)
11. Motor, air distribution, defrost (714)
12. Motor, air distribution, floor (715)
13. Motor, air distribution, vent, right (716RH)
14. Motor, air mixing damper, right (222RH)
15. Motor, air-mixing damper, left (222LH)
16. ECM
17. Pressure sensor A/C (620)
18. A/C relay (156)
19. Compressor, A/C (170)
20. REC (701)
21. Rear window electric heater relay (113)
22. BCM (707)
23. Unit, steering column assembly, CIM (703)
24. Switch unit, steering wheel (633)
