AFL control module (752)

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location: behind the left headlamp unit

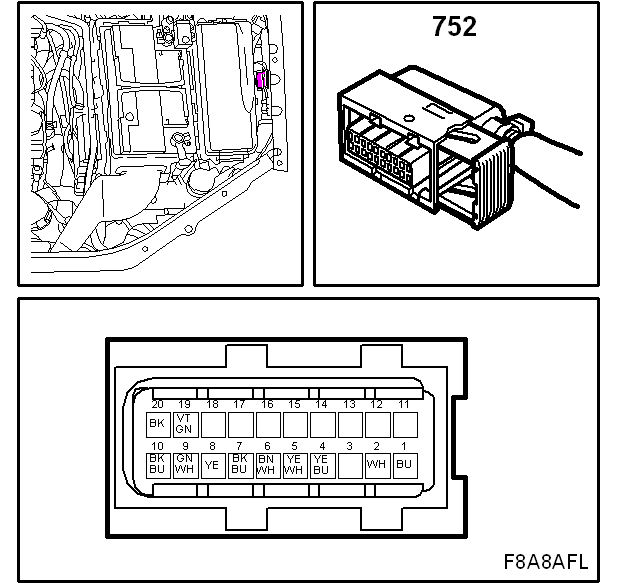

Fig 1: Identifying AFL Control Module (752) Connector Pinouts

Courtesy of SAAB-SCANIA OF AMERICA, INC.
