Connector H10-4

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location: grey connector in plastic box on member next to right-hand side of fuel tank

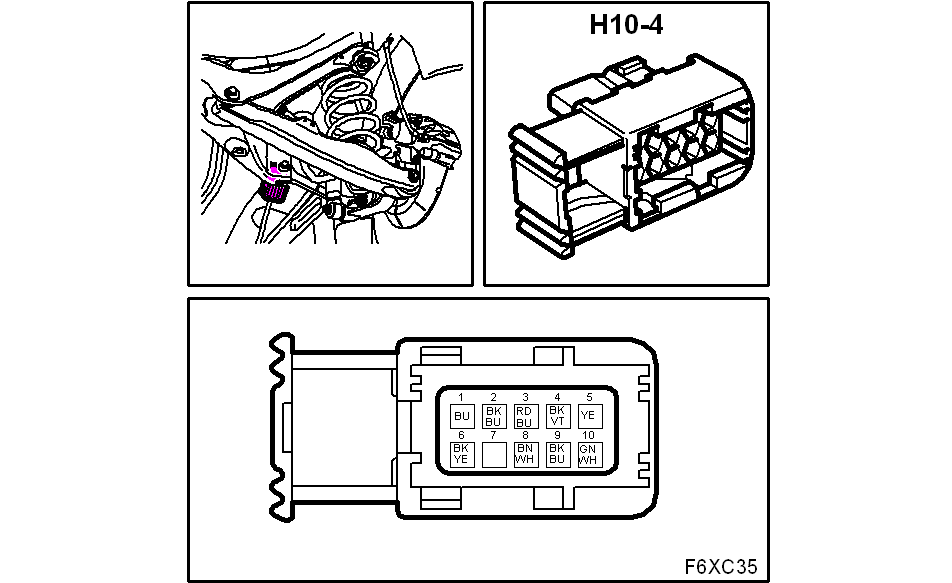

Fig 1: Identifying Connector H10-4

Courtesy of SAAB-SCANIA OF AMERICA, INC.
