Grounding point G31: Notes

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

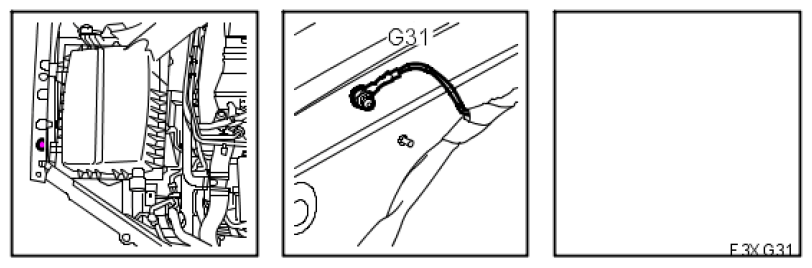

Fig 1: Identifying Grounding Point G31
G05551357Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In engine bay on side panel above right wheel housing

The grounding point is connected to grounding point G30A via crimp J9/J12, the underhood electrical centre 342 and crimp J1.
