Headlamp control module (682)

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location: on underside of headlamp assembly

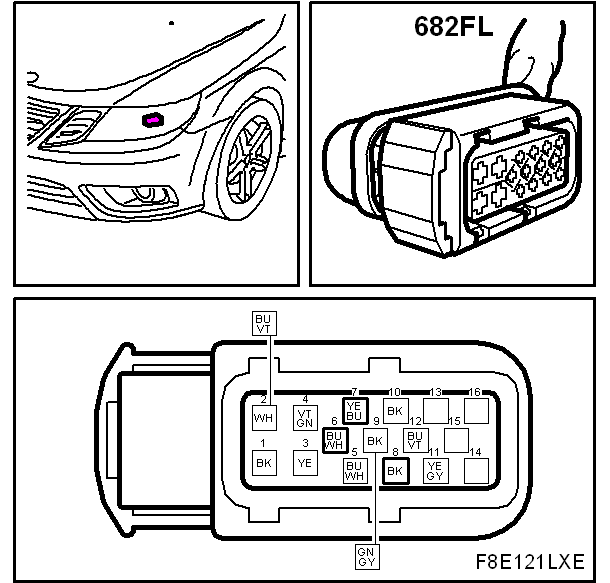

Fig 1: Identifying Headlamp Control Module (682) Connector Pinouts - FL

Courtesy of SAAB-SCANIA OF AMERICA, INC.

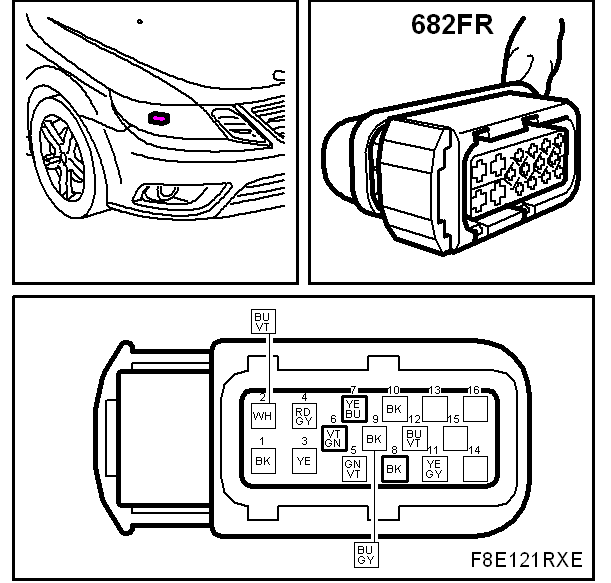

Fig 2: Identifying Headlamp Control Module (682) Connector Pinouts - FR

Courtesy of SAAB-SCANIA OF AMERICA, INC.
