Crimp J322, tailgate 5D: Notes

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location: Approx. 360 mm from branching point high level brake light towards speakers

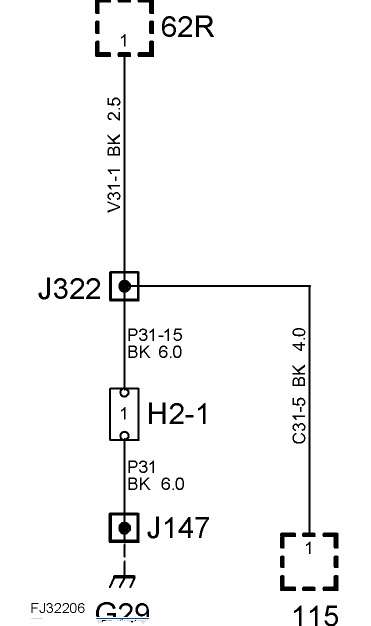

Fig 1: Crimp J322, Tailgate 5D - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
