Rain sensor
WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

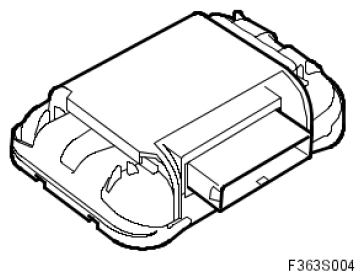

RAIN SENSOR SPECIFICATION
| Location | On the windscreen forward of the inside rear-view mirror. | |
| Make | Bosch | |
| Type designation | RSM 3SA | |
| Power supply +15 | Pin no. | 1 |
| Ground | Pin no. | 2 |
| Communication cable | Pin no. | 3 |
| Current consumption, wipers parked: | mA | 0 |
| Current consumption, wipers parked, ignition on | mA | 120 |
| Max. current consumption: | mA | 600 |
