To remove

  1. Dismantle the B-pillar trim .
  2. Remove the strap guide screw.

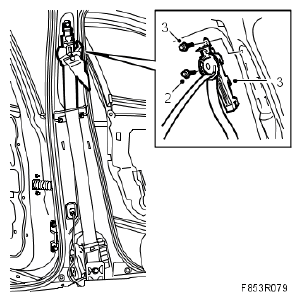

    Fig 1: Illustration For Steps 2 And 3
    G05066445Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the height adjustment screw and unhook the height adjustment.
