Slave cylinder
›
To remove
To remove
Remove the gearbox, see
Gearbox assembly B207
.

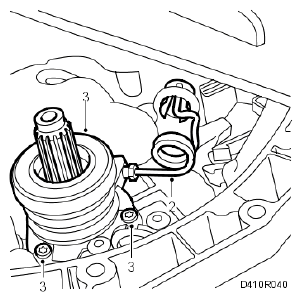

Fig 1: Illustration For Step 2-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Detach the delivery pipe.
Remove the three retaining bolts for the slave cylinder and pull it out.
