To remove

  1. Remove the Propeller shaft .
  2. Drain the fluid from the transfer case.
  3. Dismantle the dust cover (A).

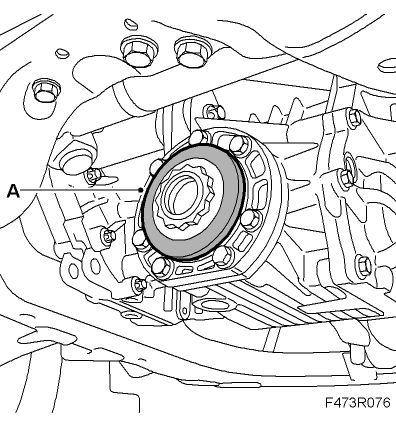

    4. Fig 1: Identifying Dust Cover
    G00535877Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Drill a 2 mm hole in the middle of the sealing ring.

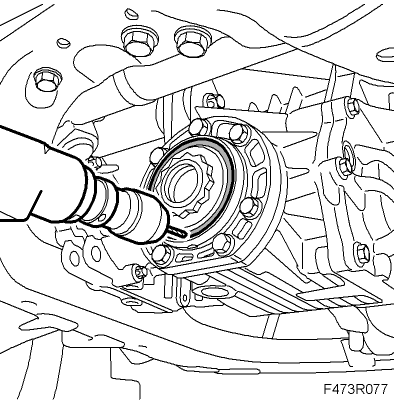

    5. Fig 2: Drilling 2 mm Hole In Middle Of Sealing Ring
    G00535878Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit a 3 mm self-tapping screw in the hole.

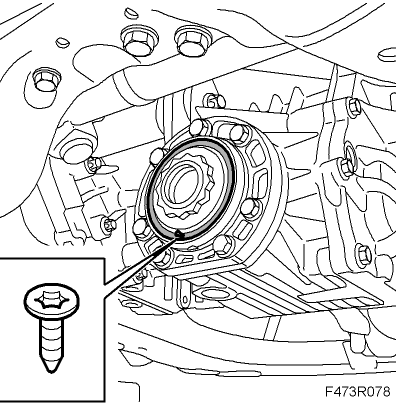

    6. Fig 3: Fitting 3 mm Screw In Hole
    G00535879Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Dismantle the sealing ring using pliers.

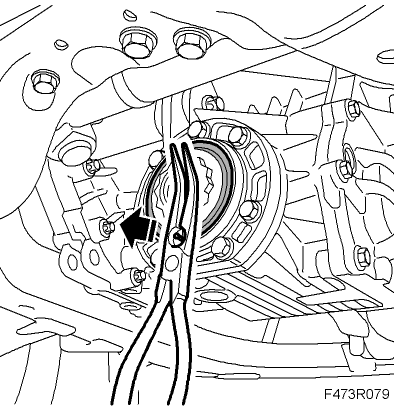

    7. Fig 4: Removing Sealing Ring
    G00535880Courtesy of SAAB-SCANIA OF AMERICA, INC.
