Theft Deterrent Sensor Replacement

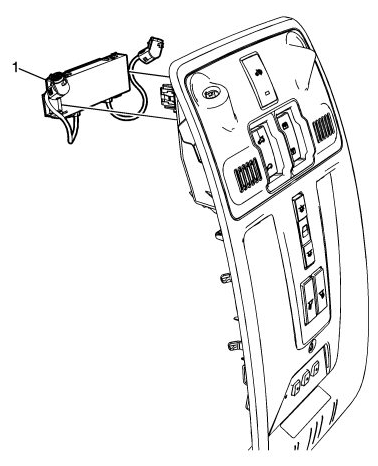

Fig 1: Identifying Theft Deterrent Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the roof console. Refer to ROOF CONSOLE REPLACEMENT .
1	Theft Deterrent Sensor Procedure  Disconnect the electrical connectors. Refer to CONTROL MODULE REFERENCES for programming and set-up procedures.
