Removal Procedure

Remove the battery fuse block/engine control module cover.

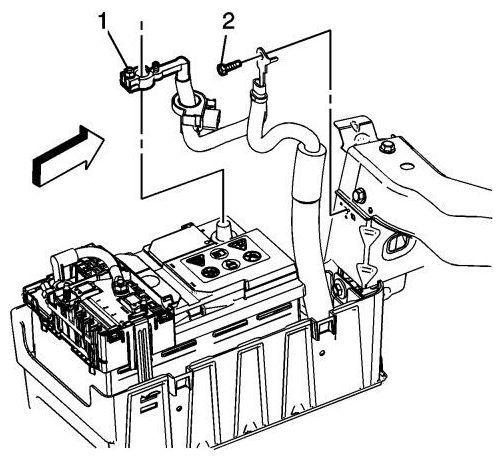

Fig 1: Identifying Negative Battery Ground Terminal And Bolt
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Disconnect the negative battery terminal (1). Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION
Remove the negative battery ground terminal (2).
Remove the auxiliary negative battery ground bolt (2).
Remove the engine block battery ground terminal (1) and bolt (2).

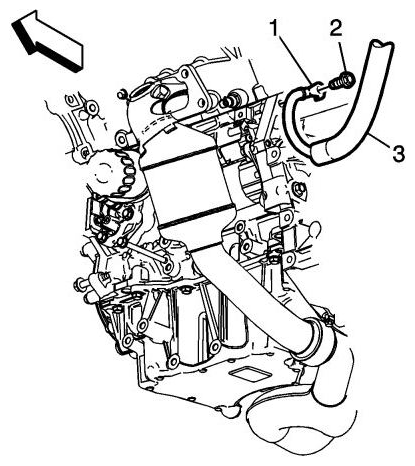

Fig 2: Removing Engine Block Battery Ground Terminal, Cable And Bolt
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the negative battery cable (3).
