Battery Tray Replacement

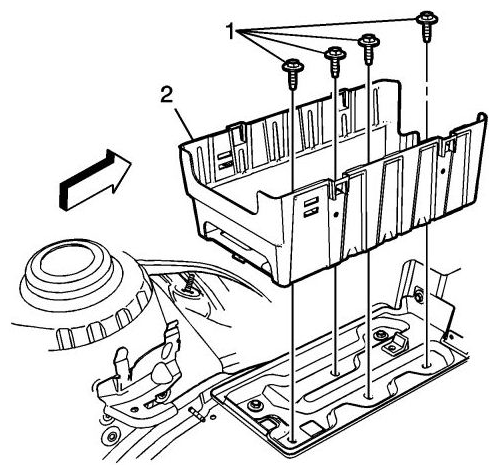

Fig 1: Removing Battery Tray With Fasteners

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures Remove the battery. Refer to BATTERY REPLACEMENT .
1	Bolt (Qty: 4) Refer to CAUTION: RETAINER . Tighten 9 N m (80 lb in)
2	Battery Tray
