Installation Procedure

  1. Position the generator (4) to the engine.

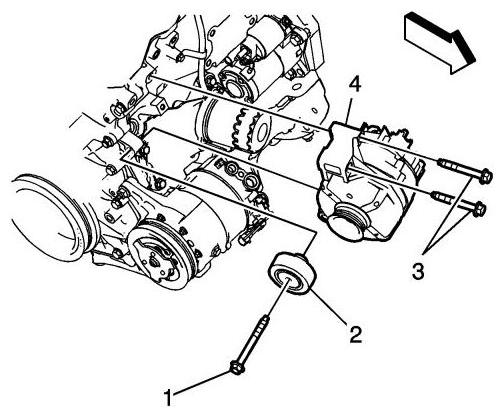

    Fig 1: Installing Generator To Engine
    G09401790Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Loosely install the generator bolts (3).
  3. Install the idler pulley. Refer to DRIVE BELT IDLER PULLEY REPLACEMENT .
  4. Refer to CAUTION: RETAINER .

    Tighten the generator bolts (3) in the sequence shown to 58 Nm (43 lb ft).

  5. Install the drive belt. Refer to DRIVE BELT REPLACEMENT .

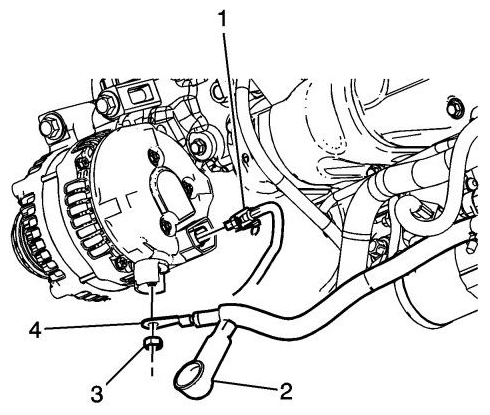

    Fig 2: Installing Positive Battery Cable Terminal, Engine Harness Electrical Connector And Nut
    G09401791Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Connect the engine harness electrical connector (1) to the generator.
  7. Install the positive battery cable terminal (4) to the generator.
  8. Install the positive battery cable nut (3) at the generator and tighten to 15 Nm (11 lb ft).
  9. Position the positive battery cable boot at the generator terminal.
  10. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
