Intake Manifold Cover Replacement

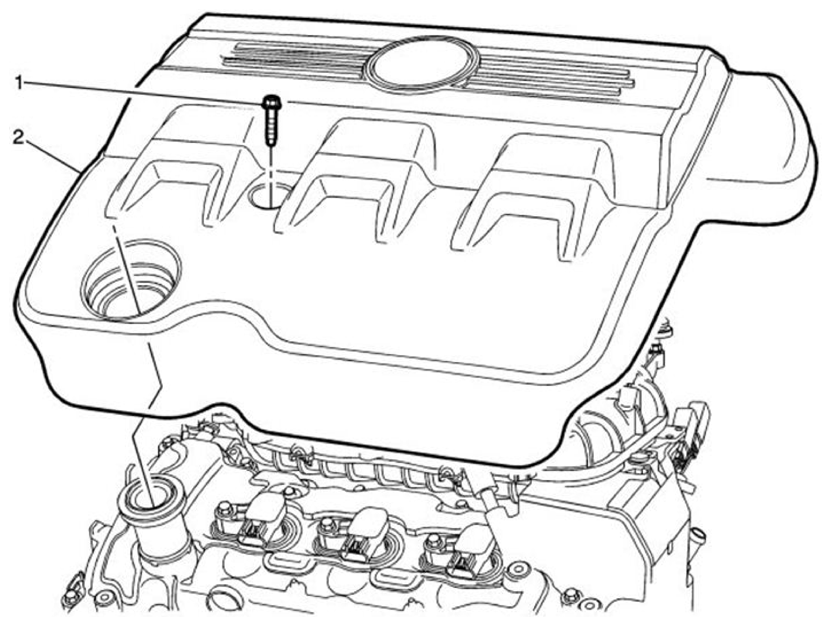

Fig 1: Identifying Intake Manifold Cover And Bolt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Intake Manifold Cover Bolt Refer to FASTENER CAUTION . Tighten  10 Nm (89 lb in)
2	Intake Manifold Cover Procedure  Remove the oil cap before removing the intake manifold cover. Transfer components as necessary.
