Throttle Actuator Control (TAC) System Description: Notes

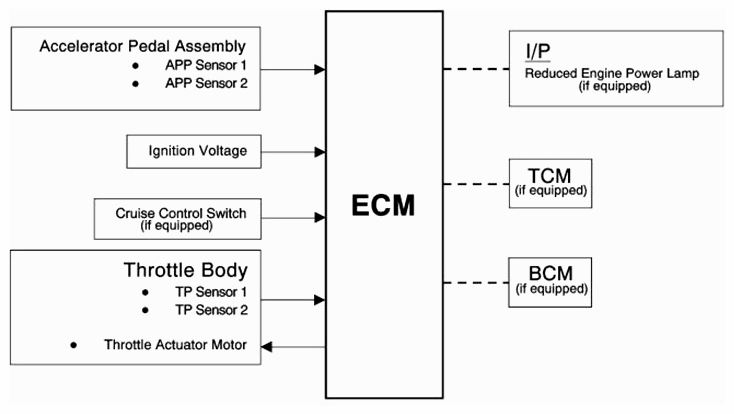

Fig 1: ECM Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The engine control module (ECM) is the control center for the throttle actuator control (TAC) system. The ECM determines the driver's intent based on input from the accelerator pedal position sensors, then calculates the appropriate throttle response based on the throttle position sensors. The ECM achieves throttle positioning by providing a pulse width modulated voltage to the throttle actuator motor. The throttle blade is spring loaded in both directions, and the default position is slightly open.
