Keyless Entry Control Module Replacement

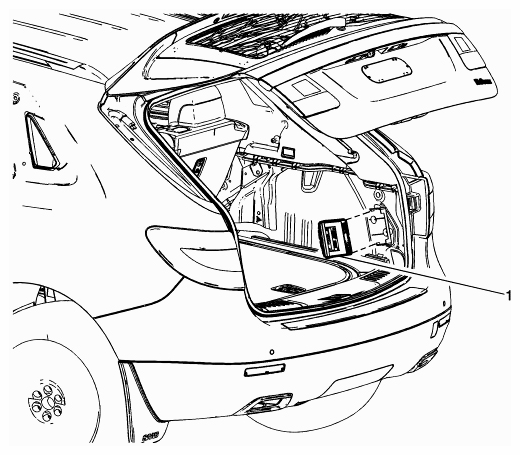

Fig 1: Removing Keyless Entry Control Module
G09405991Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
Remove the right body side trim panel. Refer to BODY SIDE TRIM PANEL REPLACEMENT .
1 Keyless Entry Control Module
Procedure
  1. Disconnect the electrical connectors.
  2. Unsnap the receiver from the bracket.
  3. For programming and set up, refer to CONTROL MODULE REFERENCES
