Communication Interface Module Replacement

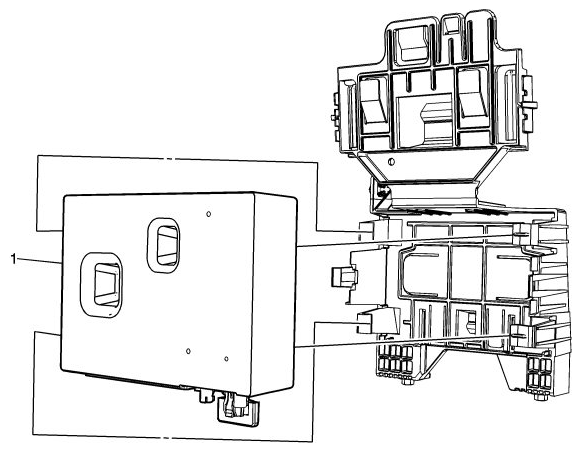

Fig 1: Identifying Communication Interface Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the communication interface module bracket. Refer to COMMUNICATION INTERFACE MODULE BRACKET REPLACEMENT .
1	Communication Interface Module Procedure  Disconnect the electrical connectors. If replacing the communication interface module be sure to transfer Bluetooth antenna, if equipped. For programming and set up procedures, refer to CONTROL MODULE REFERENCES .
