Theft Deterrent Module Replacement

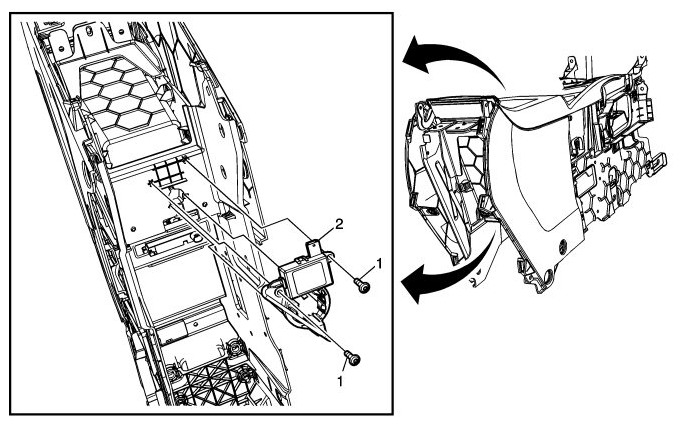

Fig 1: Identifying Theft Deterrent Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the front floor console. Refer to FRONT FLOOR CONSOLE REPLACEMENT . Remove the front floor console compartment. Refer to FRONT FLOOR CONSOLE COMPARTMENT REPLACEMENT .
1	Theft Deterrent Module Fastener (Qty: 2) Refer to CAUTION: RETAINER .
2	Theft Deterrent Module Procedure  Disconnect the electrical connector. Disengage tabs and slide through opening. Refer to CONTROL MODULE REFERENCES for programming and set up procedures.
