Driver Seat Lumbar Control Switch Replacement

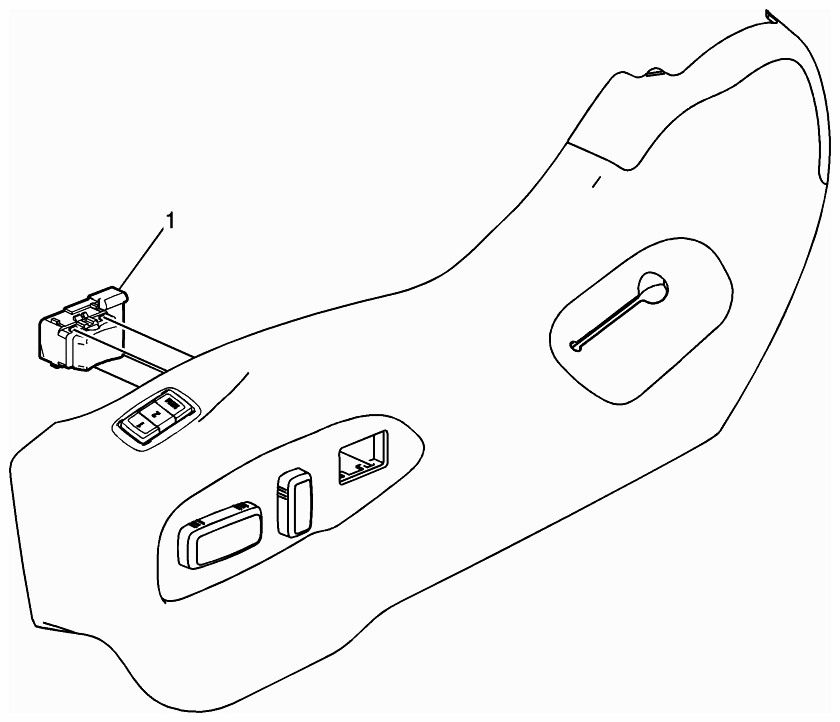

Fig 1: Identifying Driver Seat Lumbar Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the driver seat outer adjuster finish cover. Refer to DRIVER OR PASSENGER SEAT OUTER ADJUSTER FINISH COVER REPLACEMENT .
1	Driver Seat Lumbar Switch NOTE: Use a flat-bladed tool to release the switch from the finish cover.
