Removal Procedure

Refer to BRAKE DUST WARNING .

NOTE: If replacing the wheel speed sensor due to a DTC, inspect the back of the wheel bearing on the encoder surface for metallic chips or metal shavings. If you find traces of metal, clean the encoder surface to ensure that such traces do not affect the wheel speed sensor and set a DTC. Refer to DIAGNOSTIC SYSTEM CHECK - VEHICLE .

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Remove the rear suspension link. Refer to REAR SUSPENSION LINK REPLACEMENT - UPPER TO LOWER CONTROL ARM .
NOTE: Clean the wheel speed sensor mounting area on the suspension knuckle of any accumulated dirt and debris.

Remove the wheel speed sensor bolt (1).

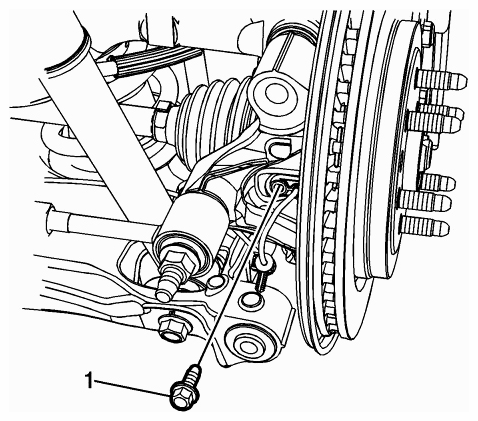

Fig 1: Identifying Wheel Speed Sensor Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the wheel speed sensor (1) by pulling the sensor straight out of the rear suspension knuckle.

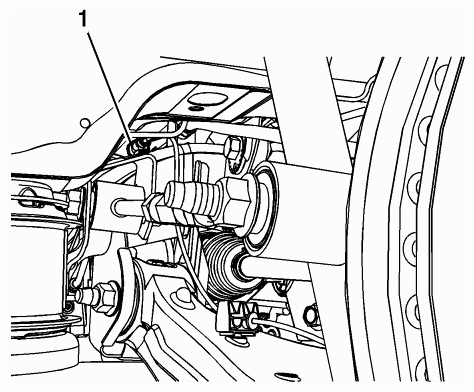

Fig 2: Identifying Wheel Speed Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Release the wheel speed sensor harness from the retainers (1).

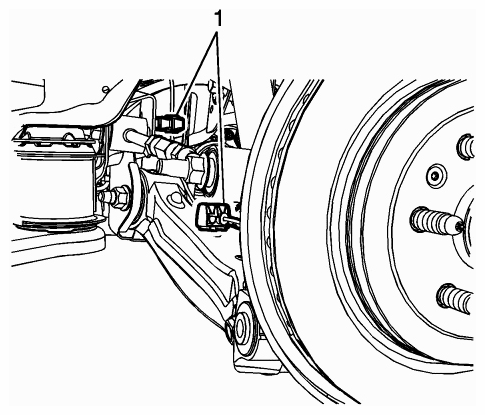

Fig 3: Identifying Wheel Speed Sensor Harness Retainers
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Disconnect the wheel speed sensor electrical connector (1).

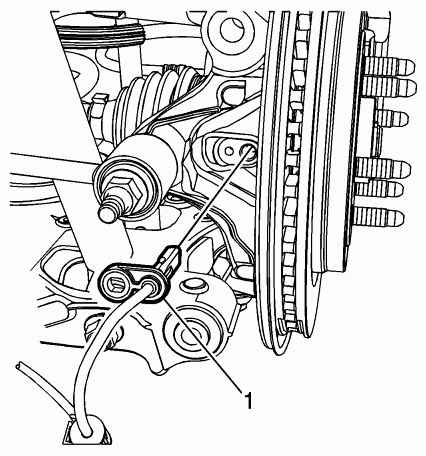

Fig 4: Identifying Wheel Speed Sensor Electrical Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Release the wheel speed sensor electrical connector retainer and remove the wheel speed sensor.
