Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .

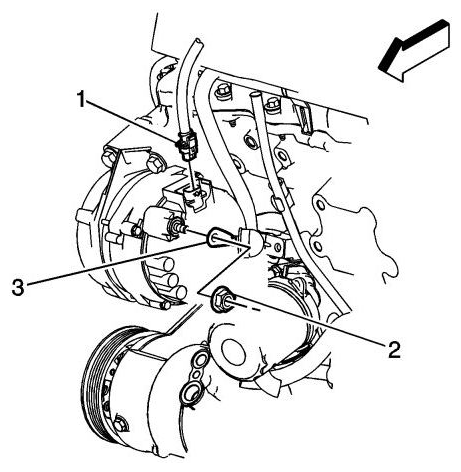

    Fig 1: Identifying Engine Harness Electrical Connector, Positive Battery Cable Terminal And Nut
    G09401792Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Reposition the positive battery cable boot at the generator terminal.
  3. Disconnect the engine harness electrical connector (1) from the generator.
  4. Remove the positive battery cable nut (2) at the generator.
  5. Remove the positive battery cable terminal (3) from the generator.
  6. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT .
  7. Remove the idler pulley bolt (1) and idler pulley (2). Refer to DRIVE BELT IDLER PULLEY REPLACEMENT .

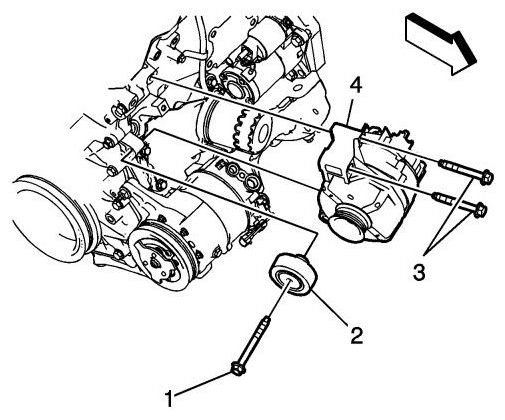

    Fig 2: Removing Generator With Bolts
    G09401793Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the generator bolts (3).
  9. NOTE: When removing the generator from the vehicle, it may be necessary to maneuver the generator to remove it from the vehicle.

    Remove the generator (4).
