Brake Pedal Position Sensor Replacement

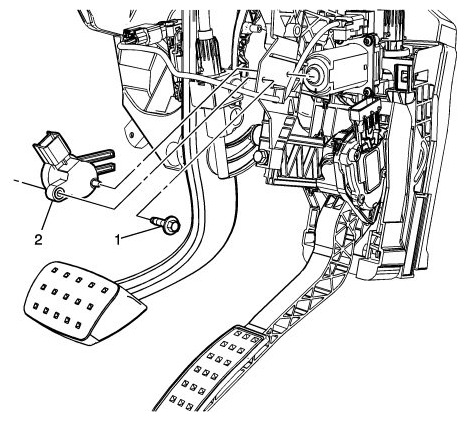

Fig 1: Removing Brake Pedal Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the instrument panel insulator panel. Refer to INSTRUMENT PANEL INSULATOR PANEL REPLACEMENT - LEFT SIDE .
1	Brake Pedal Position Sensor Bolt Refer to CAUTION: RETAINER Procedure  Remove the sensor bolt. Tighten  9 N m (80 lb in)
2	Brake Pedal Position Sensor Procedure  Disconnect the electrical connector. Pull the sensor away from the bracket. Recalibrate the brake pedal position sensor. Refer to BRAKE PEDAL POSITION SENSOR CALIBRATION .
