Removal Procedure

NOTE: Secure the chain boxes with the hook chains on the outside of the engine bridge.

Remove the equipment and put it back in their proper slots.

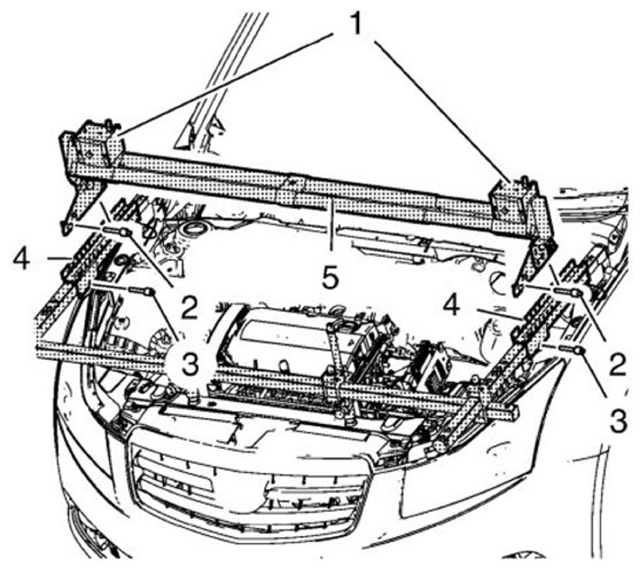

Fig 1: Installing EN-47649 Engine Bridge Onto EN- 47650-50 Rail
Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: The EN-47650-50 rail is the equipment of the EN-47650 retainer frame and enclosed in the EN-47650 retainer frame tool kit.
