Installation Procedure

  1. Position the primary camshaft drive chain lower guide to the oil pump.

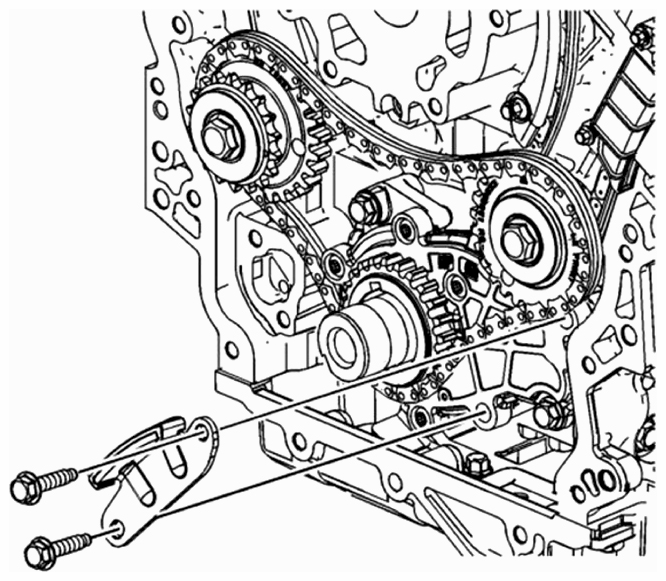

    Fig 1: Installing Drive Chain Lower Guide Bolts
    G09400530Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Refer to FASTENER CAUTION .

    Install the primary camshaft drive chain lower guide bolts and tighten to 23 Nm (17 lb ft).

  3. Install the primary camshaft drive chain tensioner. Refer to PRIMARY CAMSHAFT INTERMEDIATE DRIVE CHAIN TENSIONER REPLACEMENT .
