Installation Procedure

  1. Install the primary upper camshaft drive chain guide. Refer to PRIMARY TIMING CHAIN GUIDE REMOVAL - LOWER .

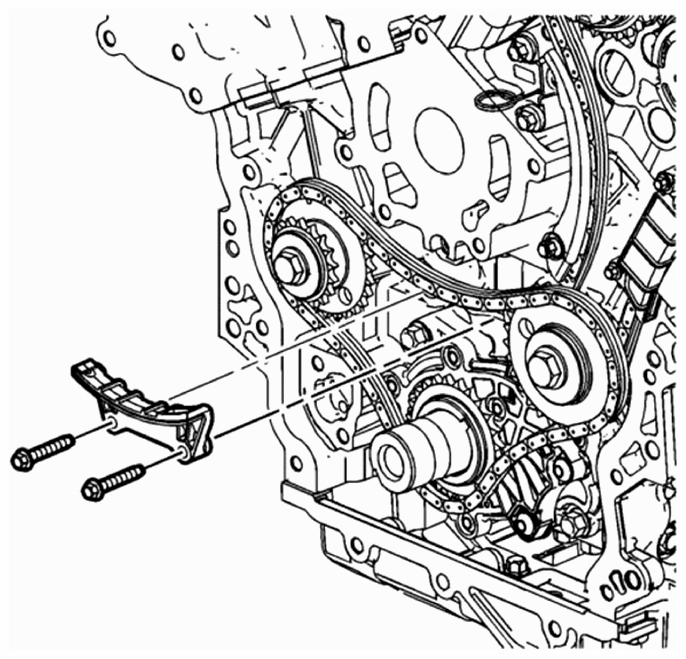

    Fig 1: Installing Primary Upper Camshaft Drive Chain Guide
    G09400532Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Install the primary camshaft drive chain tensioner. Refer to PRIMARY CAMSHAFT INTERMEDIATE DRIVE CHAIN TENSIONER INSTALLATION .
  3. Assemble the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT .
