Installation Procedure

  1. Install the left bank secondary camshaft drive chain guide. Refer to SECONDARY TIMING CHAIN GUIDE INSTALLATION - LEFT SIDE

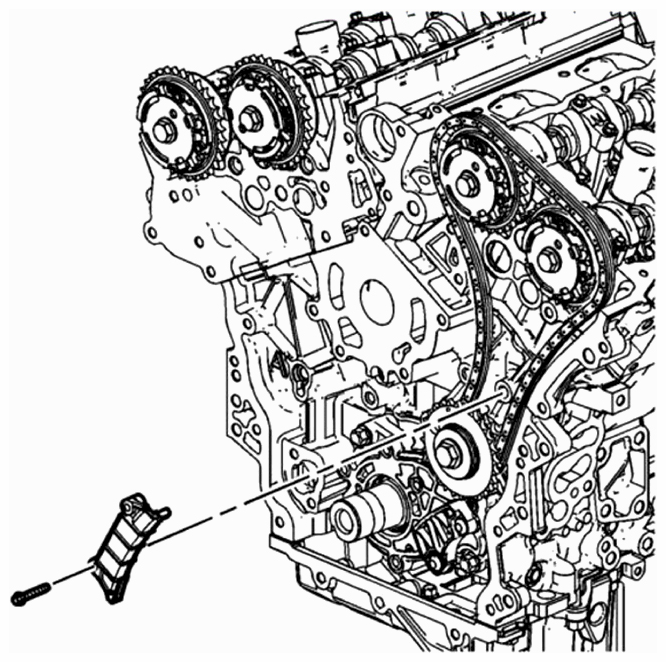

    Fig 1: Installing Left Bank Secondary Camshaft Drive Chain Guide
    G09400516Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Install the left bank secondary camshaft drive chain tensioner. Refer to SECONDARY TIMING CHAIN TENSIONER INSTALLATION - LEFT SIDE .
  3. Assemble the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT .
