Crankshaft Position Sensor Replacement

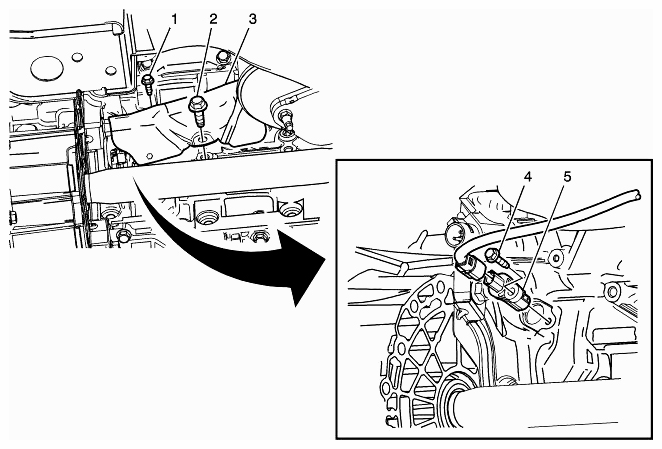

Fig 1: Identifying Crankshaft Position Sensor And Mounting Bolt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  If equipped with AWD, remove the right side catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT - RIGHT SIDE (LF1) . Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Bolt Refer to CAUTION: RETAINER . Tighten  9 N m (80 lb in)
2	Bolt Tighten  58 Nm (42 lb ft)
3	Exhaust Manifold Lower Heat Shield
4	Bolt Tighten  10 Nm (89 lb in)
5	Crankshaft Position Sensor Procedure  Disconnect the crankshaft position sensor harness connector.
