Engine Coolant Temperature Sensor Replacement (LF1)

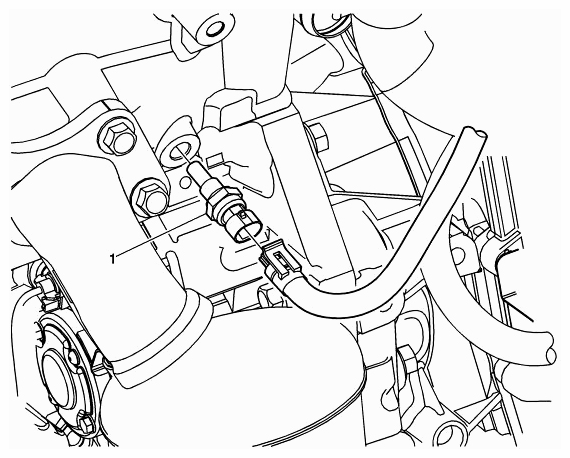

Fig 1: Identifying Engine Coolant Temperature Sensor (LF1)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Partially drain the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (GE 47716) or COOLING SYSTEM DRAINING AND FILLING (STATIC FILL LAU) or COOLING SYSTEM DRAINING AND FILLING (STATIC FILL LF1) .
1	Engine Coolant Temperature Sensor Refer to CAUTION: RETAINER Procedure  Reposition the sensor heat shield. Disconnect the ECT sensor harness connector. Tighten  20 Nm (35 lb in)
