Installation Procedure

Install the fuel feed line (3) into the plastic retainers (2).

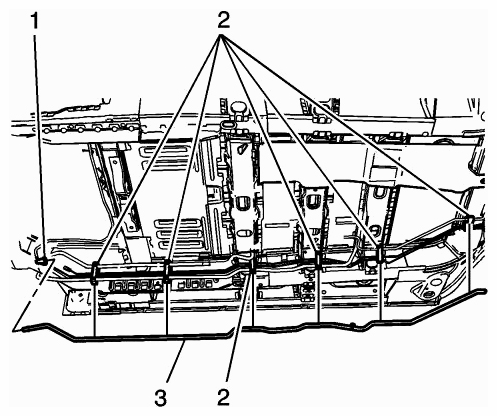

Fig 1: Identifying Fuel Feed Line Quick Connect, Fuel Feed Line And Plastic Retainers
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect the fuel feed line quick connect (1). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .
Install the fuel pressure sensor. Refer to Fuel Pressure Sensor Replacement - Fuel Feed Pipe .
Engage the fuel feed line (1) to the plastic retainer (2).

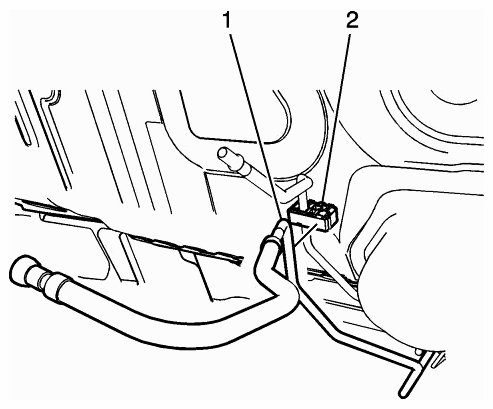

Fig 2: Identifying Fuel Feed Line And Plastic Retainer
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect the fuel feed line (1). Refer to METAL COLLAR QUICK CONNECT FITTING SERVICE .

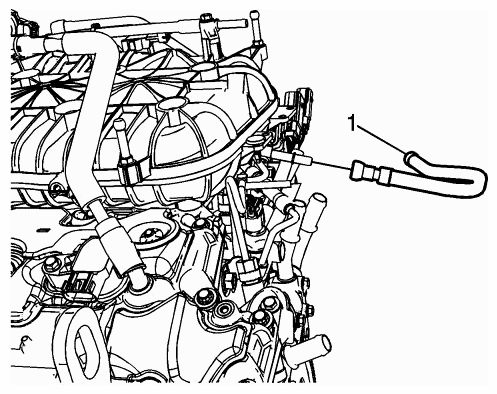

Fig 3: Identifying Fuel Feed Line

Courtesy of SAAB-SCANIA OF AMERICA, INC.
